If you’re looking for a no code implementation, head over to Payment Links.

​
How to integrate Sprintcheckout payments API

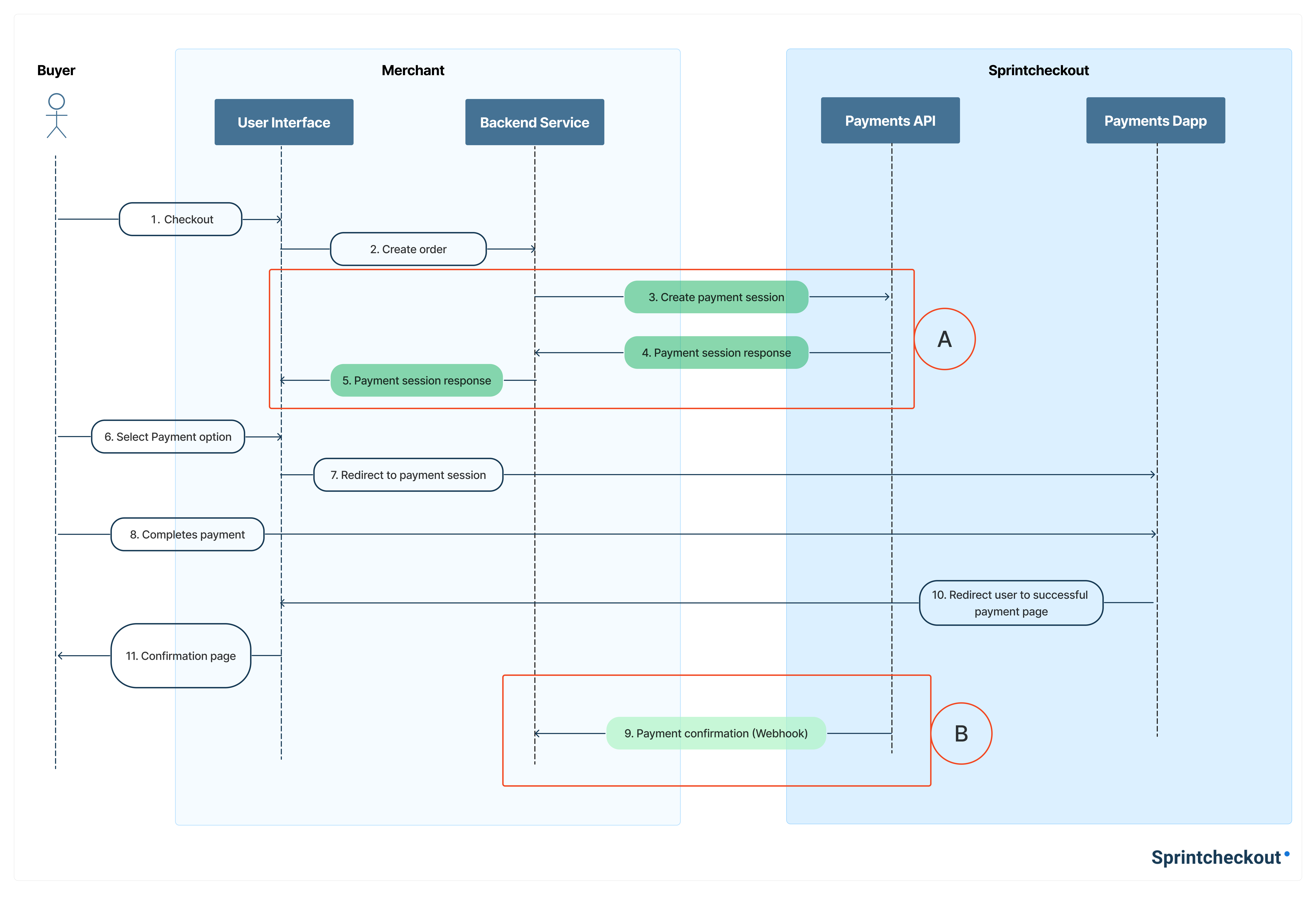

On this guide you can learn how to create a payment session and get notification on to your backend via webhooks. Below you can see a typical integration flow between an ecommerce and a payment gateway. To integrate with Sprintcheckout API follow these two steps:

​
A. Create payment session and receive a redirect url

Go to create a payment session for full API reference.

​
Example request

cURL
  curl --request POST \
  --url https://api.sprintcheckout.com/api/checkout/v2/payment_session \
  --header 'Content-Type: application/json' \
  --header 'X-SC-ApiKey: <x-sc-apikey>' \
  --data '{
  "orderType": "STATIC",
  "amount": 100.5,
  "minAmount": 100.5,
  "editable": true,
  "currency": "USD",
  "orderId": "inv-00010",
  "successUrl": "<string>",
  "cancelUrl": "<string>"
}'

​
Example response

You will receive a json like this:
  {
    "sessionId": "NjVkY2MzNTI3N2YxZjEwYmE0OWVjN2M2",
    "redirectUrl": "https://app.sprintcheckout.com/?uid=NjVkY2MzNTI3N2YxZjEwYmE0OWVjN2M2"
  }
For some use cases a payment session can accept multiple payments (for example donation links). In that case you can do updates to the payment session, check full API reference on update a payment session.

​
B. Get payment updates via webhook

Received automatically when a payment status changes.

​
1. Endpoint Setup

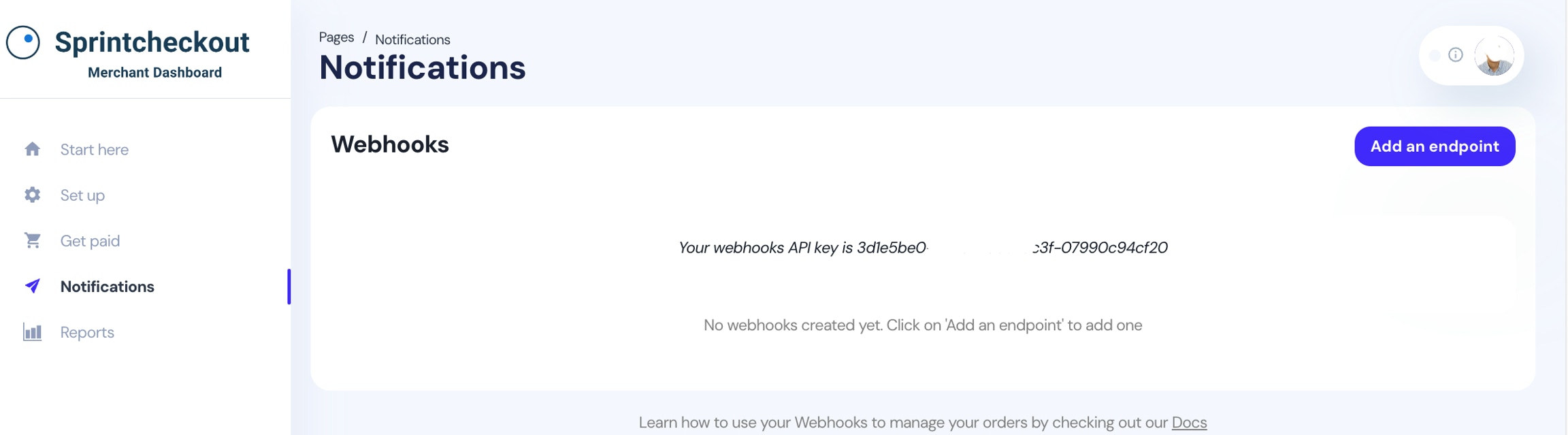

On the Notifications section, you can set up the endpoint to receive the order confirmation. Set your webhook URL in the Notifications section.

​
2. Security

Requests include the header X-Webhook-Api-Key (or the key shown on your dashboard). You should verify this matches your secret key to ensure the request is genuine.

​
3. Payload Format

The payment notification message will be a JSON POST request with this format:
{
  "event": "payment.succeeded",
  "timestamp": 1769339152,
  "orderId": "static-id-123",
  "amount": 100.5,
  "currency": "USD",
  "token": "USDC",
  "successUrl": "http://successurl.example",
  "failUrl": "http://failurl.example",
  "cancelUrl": "http://cancelurl.example",
  "paymentSessionId": "0a77a733-4323-482c-b646-91cafd48ef6a",
  "status": "SUCCESS",
  "chain": "polygon",
  "receipts": [
    "https://polygonscan.com/tx/0x1234567890abcdef1234567890abcdef1234567890abcdef1234567890abcdef"
  ]
}

​
4. Status Values

Possible values for status include:
  • PENDING: Payment initiated but not yet settled.
  • SUCCESS: Payment successfully settled.
  • FAILED: Payment failed or was rejected.
  • EXPIRED: The session time limit was reached.

​
5. Retry Policy & Idempotency

  • Retries: If your server does not return a 200 OK status, we will retry the notification multiple times (exponential backoff).
  • Idempotency: Webhooks may be delivered more than once. Use the paymentSessionId or orderId to ensure you process each Event only once.

​

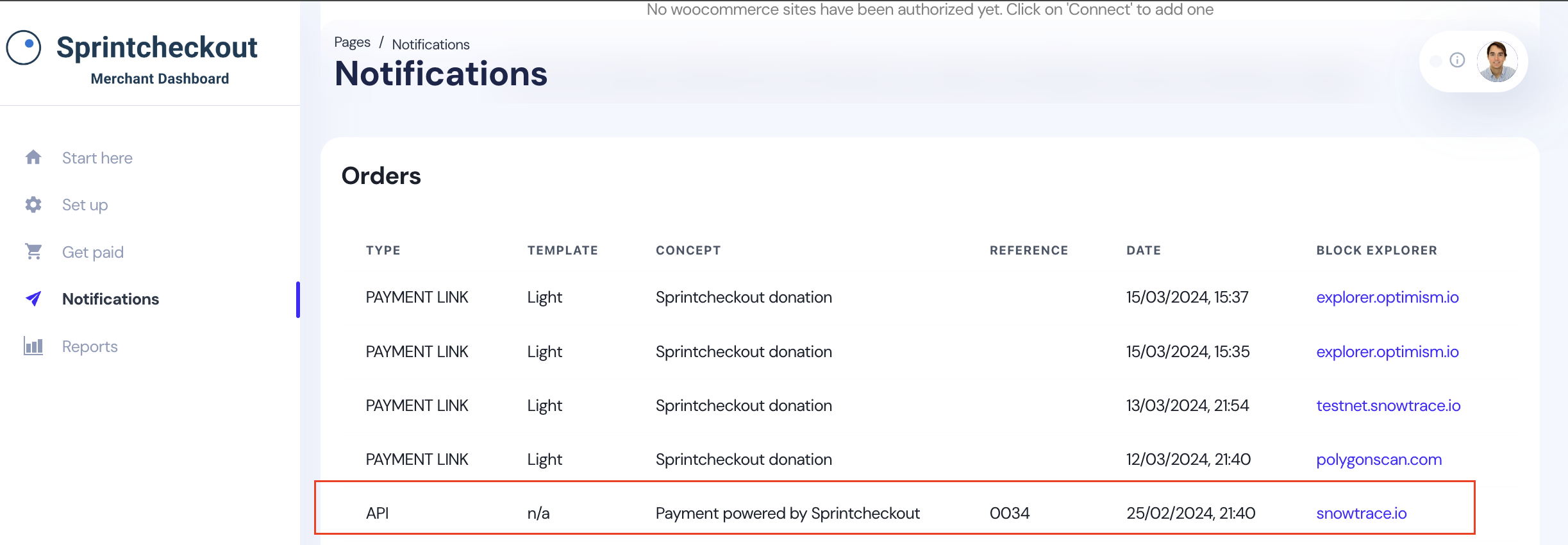

Dashboard Orders

On the Dashboard > Notifications section you can also find a table where you will find every order you receive via API.
